Quality Gear box by Varitron from TAIWAN

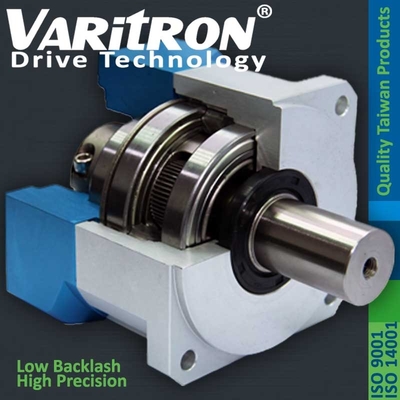

Varitron Cyclo Drive Gear box Speed Reducer Motor C97 harmonic gear
Main Features
-High Precision Gear
The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.
-Single-piece Gear box & Advanced Surface Treatment
The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosion-resistant capability.
-Integrated Planetary Arm Bracket
The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.
-Modular Deisgn of Motor Connection Plate
The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.
-Modular Input Shaft
Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.
Quick Facts
Model Number | Varitron Cyclo Drive Gear box Speed Reducer Motor C97 harmonic gear |
Speed Reduction Method | Planetary gear mechanism with designed tooth profile |
Efficiency | 95% per stage gear box |
Shock Load | 300% as there are only compressive forces rather than shear forces on the tooth |
Gear box Mounting | Flange Mounting, Foot mounting parts sold separately |
Reduction Ratio | Up to 1:10 per stage 1:1000 on 3-stages |
Capacity Range | 100Watt to 11,000Watt |
Enclosure | Totally enclosed IP55 |
Power Source | Servo motor, stepper motor |
Backlash | DM series: below 5arcmin on single stage DH / DL series: below 10arcmin on single stage |
Reduction Gear box Lubrication Method | High viscosity anti-separation grease |
Method of Coupling with Driven Machine | Coupling, gears, chain sprocket or belt |
Standard | CE, UL, CSA, CCC, ISO |
Warranty | 1 Year Limited Warranty |
,
Planetary Gearbox Specification
<< More Detailed Information You May Needed >>
E-Catalog
http://www.c-var.com/catalog/Varitron_Servo_Gearhead.pdf
Packaging detail: wooden case or carton box or according to customer requirement.
Varitron Engineering (Taiwan) Co., Ltd. establish in 1971, specialist in design, R&D and manufacturing of wide range of high-techpower transmission products, including cyclo gearmotor, helical gear reducers, planetary gear box speed reducers, gearbox and speed variator. In recent decade, to meet customers' requirements of quality and price, we have been dedicated to constantly upgrading the performance of reducers, maximize efficiency, and provide the most comprehensive technical supports.
