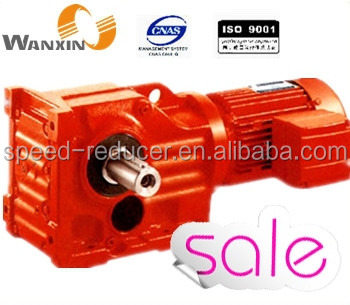

Helical Bevel Industrial Steel And Cast Iron K Series Gear Motor Cast Iron Gear Units

1 Set
MOQ
Helical Bevel Industrial Steel And Cast Iron K Series Gear Motor Cast Iron Gear Units
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: WK series
Gearing Arrangement: Hypoid
Output Torque: 10~62800 n.m
Rated Power: 0.12-200 kw
Input Speed: 0~1800 rpm
colour: red, blue, green, as required
Material: steel and cast iron
Informations de base
Model Number: WK series
Conditions de paiement et expédition
Packaging Details: wooden case
Supply Ability: 1000 Set/Sets per Month
Description de produit

Specifications:

1,WK series reducer are based on the building block design, so it's convenient for them to fit all types of motors or other power input. The same type of combine can fit motors with different power, so that it's possible for different types of machines to combine or connect.

2,High transmission efficiency. A single machine can reach a transmission efficiency as much as 96%.

3,Precise division of transmission ratio with a wide range. The combination of machines can produce a larger transmission ratio at a low output rotate speed.

4,Various ways of installation. Horizontal installation at any position or B5, B14 flanged installation, the deceleration machine have two bottom feet processes to install the flat surface.

Working Environment:

1,Working temperature: -40~50°c( the lubrication should be heated above 0°c if the machine works below 0°c)

2,The altitude of working place should be lower than 1000 meters.

3,The input rotate speed should not exceed 1800rpm. The circumferential speed of the gear should not exceed 20m/s.

4,Suitable for normal-reverse rotation.

5,Without industry limitation.

6,Please consult our technical supporting department for other circumstances.

Installation Dimension:

Related Products

Our main products:

WR, WF, WK, WS series modular gear speed reducer with brake motor;

H,B series standard industrial gearbox;

P series planetary gear speed reducer;

T series spiral bevel gearbox;

ZDY, ZLY, ZSY, ZFY parallel shaft series;

DBY, DCY, DFY vertical shaft series hardened gear reducer;

NMRV/RV series worm gear speed reducer.

Packaging & Shipping

Our Services

1,We are ready to provide you with technical advices and support.

2,Before product acceptance, we will answer all of your questions in a timely manner, provide technical support.

3,Our technical services group will provide technical support for products repair and maintenance.

4,Our commitment is to create even more value for you, keep a close contaction relationship with our customers.

Buyer Feedback

We sincerely thanks for the trust and support from all our customers. In order to continuously improve the quality of our products and services, enhance the customer satisfaction, we would like to receive your feedback when you view our products online. Meanwhile, we eagerly look forward to get your valuable comments and suggestions on our work.

1,Do you have any questions about our products specifications?

2,Do you have problems about how to select the suitable gearbox for your machine or equipment?

3, Do you have any technical questions to get support or consult?

4,What's your opinion about our products quality and services?

5,What's your opinion about our products performance?

Company Information

Fifteen years' hard-working has accomplished our leadership in power transmission industry. We have a most experienced worker group in our company. We own the most advanced processing equipment and testing equipment. Our product has been exported to Europe, Southeast Asia, the Middle East, Africa, South America and many other countries and regions. They are widely used in metallurgy, mining, petrochemical, tobacco, ceramics, rubber, food, beverages, transportation and other industries. Our products have the excellent quality of high stability , the advanced performance and competitive prices. The most powerful design group is working for you.
