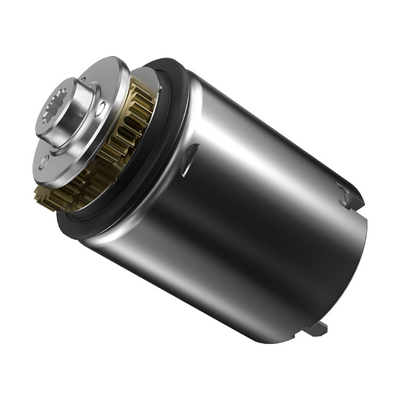

Name: Low Speed High Torque Worm Gear Motorcycle Gearbox Transmission ABS Gearbox Custom
Brand: Low Speed High Torque Worm Gear Motorcycle Gearbox Transmission ABS Gearbox Custom
SKU: Alexander 126H, Cars, motorcycles, tricycles, trucks, buses
Price: 1 USD
Availability: InStock
Rating: 4.7 (156 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

OE NO.: other auto transmission

Model: Alexander 126H

Year: 1976-1991

Car Fitment: ABG

Warranty: other

Car Model: Cars, motorcycles, tricycles, trucks, buses

Size: custom

Product Name: 8mm gear motor mini actuator

Motor: stepper/ coreless/brush motor

Spindle Length: 50.3mm

Max Feed Velocity: 15mm/s

Max Force for Press Fit: 25N

Radial Play: max 0.08mm, 5mm from flange

Temperature Range: -15......+80â„ƒ

Noise: lower than 50dB (under stable circumstances)

Motor type: Bushless

Certification: ISO9001, ISO14001, ISO13485, IATF16949

Informations de base

Certification: ISO9001, ISO14001, ISO13485, IATF16949

Model Number: Alexander 126H, Cars, motorcycles, tricycles, trucks, buses

Conditions de paiement et expédition

Packaging Details: Standard packaging or according to client's requirement.

Supply Ability: 5000 Piece/Pieces per Day

Description de produit

provide micro gear gearbox motor drives system custom services.
dc gear motor(size)	Rated Voltage	speed	load current
3.4mm	1.5-5V	3.5-300rpm	100mA-220mA
4mm	1.5-5V	2.4-300rpm	340mA
6mm	3 – 12V	No Load Speed: 11-3824 rpm Rated Load Speed: 10-3229 rpm	No Load Current: 40 mA Rated Load Current: 100 mA
8mm	3 – 12V	14 – 3111 rpm	Gear Stages: 1 – 4
10mm	3-24 V	No Load Speed: 20-4318 rpm Rated Load Speed: 18-3625 rpm	No-load Current: 60-80 mA
12mm		7 – 254 rpm	Gear Stages: 1 – 4
16mm		No-load Speed: 4-1,373 rpm Rated Load Speed: 3-1,125 rpm	No-load Current: 85-110 mA Rated Load Current: 130-150 mA
20mm		No-load Speed: 7-1,636 rpm Rated Load Speed: 7-1,420 rpm	No-load Current: 70-90 mA Rated Load Current: 125-130 mA
22mm		No-load Speed: 6-1,886 rpm Rated Load Speed: 5-1,675 rpm	No-load Current: 100-120 mA Rated Load Current: 295-300 mA
24mm		No-load Speed: 5-1,460 rpm Rated Load Speed: 4-1,259 rpm	No-load Current: 70-80 mA Rated Load Current: 215-220 mA
28mm		5 – 1658 rpm	300mA max Gear Stages: 1 – 4
32mm		5 – 1348 rpm	Gear Stages: 1 – 4
38mm		No-load Speed: 3-1,386 rpm Rated Load Speed: 3-1,294 rpm	No-load Current: 315-335 mA Rated Load Current: 1,679-1,684 mA
